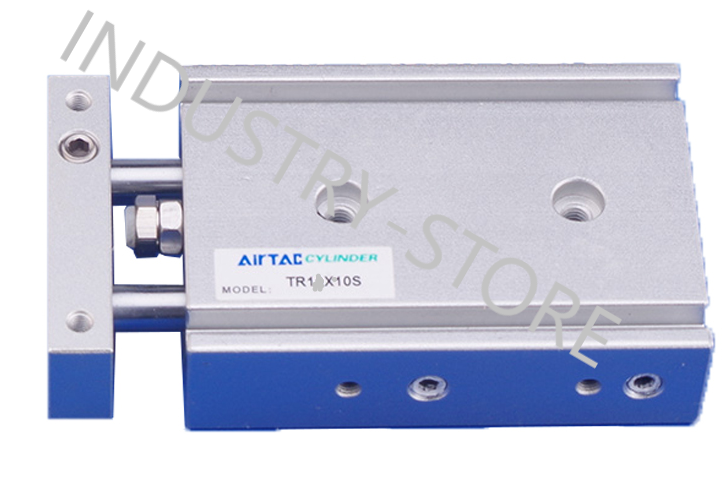

TR25X Twin-rod Cylinder

AIRTAC CYLINDERS - TR series dual shaft cylinder

PDF

TWIN ROD CYLINDER

Airtac TR cylinders are a functional replacement for the SMC CXS series cylinders

--Fluid : Air

-- Acting type : Double Acting

1. JIS standard is implemented.

2. The non-rotating precision is high and deflection of the end of piston rod is low, which is suitable for precise guide.
3. It adopts lengthening type sliding supporting guide. No additional lubricant is needed and it has good performance of guide.
4. Mounting holes on three sides facilitates multi-position mounting.
5. It is good resistance to bending and twisting moments.
6. Except for the axial, each side of the cylinder has installation orifices to provide several installation and fixation ways for the customers
7. There are two groups of air intake and outlet at two sides of the cylinder for the actual selection.
8. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
9. Standard configuration of this series has magnet and the type without magnet is not available.

VARIANTS OF THE CODE AVAILABLE :

TR25X100SG     TR25X10SG   TR25X120SG   TR25X125SG   TR25X150SG

TR25X15SG   TR25X175SG    TR25X200SGS   TR25X20SG    TR25X25SG    TR25X30SG

TR25X35SG     TR25X40SG    TR25X45SG    TR25X50SG    TR25X55SG     TR25X5SG

TR25X60SG    TR25X65SG    TR25X70SG    TR25X75SG    TR25X80SG     TR25X85SG

TR25X90SG   TR25X95SG
