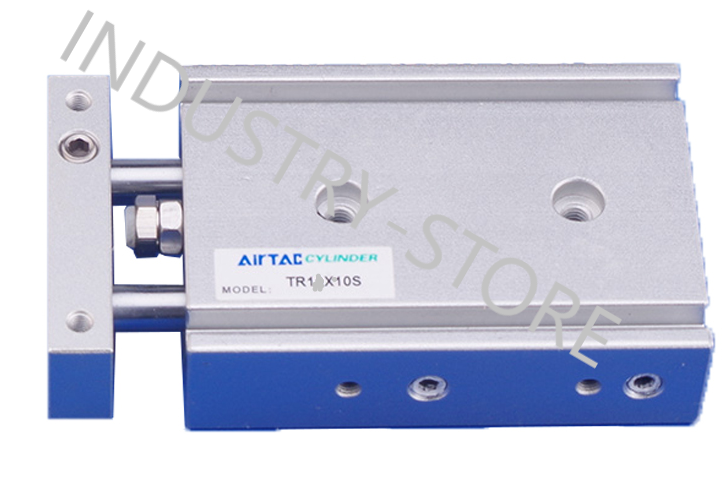

TR20X Twin-rod Cylinder

AIRTAC CYLINDERS - TR series dual shaft cylinder

PDF

TWIN ROD CYLINDER

Airtac TR cylinders are a functional replacement for the SMC CXS series cylinders

--Fluid : Air

-- Acting type : Double Acting

1. JIS standard is implemented.

2. The non-rotating precision is high and deflection of the end of piston rod is low, which is suitable for precise guide.
3. It adopts lengthening type sliding supporting guide. No additional lubricant is needed and it has good performance of guide.
4. Mounting holes on three sides facilitates multi-position mounting.
5. It is good resistance to bending and twisting moments.
6. Except for the axial, each side of the cylinder has installation orifices to provide several installation and fixation ways for the customers
7. There are two groups of air intake and outlet at two sides of the cylinder for the actual selection.
8. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
9. Standard configuration of this series has magnet and the type without magnet is not available.

VARIANTS OF THE CODE AVAILABLE :

TR20X100S   TR20X10S   TR20X10SH   TR20X120S   TR20X125S   TR20X150S

TR20X150SH   TR20X15S    TR20X175S   TR20X200S    TR20X20S    TR20X25S

TR20X30S    TR20X30SH    TR20X35S    TR20X40S    TR20X40SH     TR20X50S

TR20X50SH    TR20X55S    TR20X5S    TR20X60S    TR20X70SH     TR20X75S

TR20X75SH   TR20X80S    TR20X85S   TR20X90S    TR20X95S
