AIRTAC

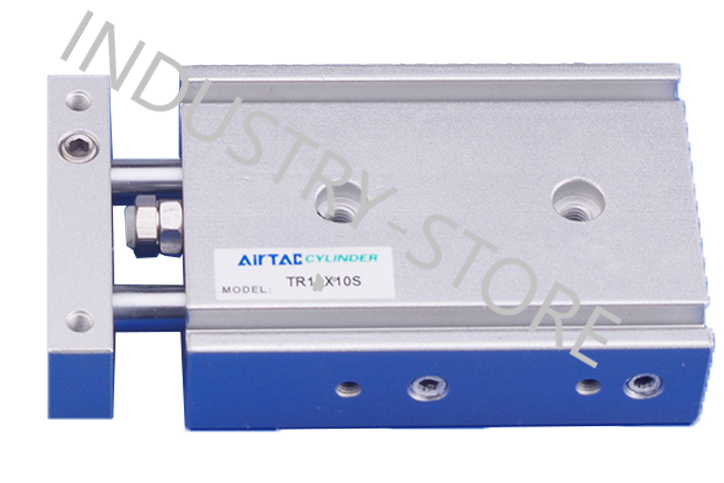

TR10X Twin-rod Cylinder

Regular price €65,00 EUR
Regular price Sale price €65,00 EUR
Sale Sold out
Shipping calculated at checkout.
TR10X Twin-rod Cylinder

AIRTAC CYLINDERS - TR series dual shaft cylinder

PDF

TWIN ROD CYLINDER

Airtac TR cylinders are a functional replacement for the SMC CXS series cylinders

--Fluid : Air

-- Acting type : Double Acting

  1. JIS standard is implemented.
  2. The non-rotating precision is high and deflection of the end of piston rod is low, which is suitable for precise guide.
  3. It adopts lengthening type sliding supporting guide. No additional lubricant is needed and it has good performance of guide.
  4. Mounting holes on three sides facilitates multi-position mounting.
  5. It is good resistance to bending and twisting moments.
  6. Except for the axial, each side of the cylinder has installation orifices to provide several installation and fixation ways for the customers
  7. There are two groups of air intake and outlet at two sides of the cylinder for the actual selection.
  8. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
  9. Standard configuration of this series has magnet and the type without magnet is not available.

VARIANTS OF THE CODE AVAILABLE :



TR10X100S  TR10X10S   TR10X15S   TR10X20S   TR10X20SH   TR10X25S    TR10X30S

TRX30SH   TR10X35S   TR10X40S   TR10X45S   TR10X50S   TR10X55S   TR10X5S

   TR10X60S    TR10X65S    TR10X70S    TR10X75S   TR10X80S   TR10X85S

TR10X90S   TR10X95S
