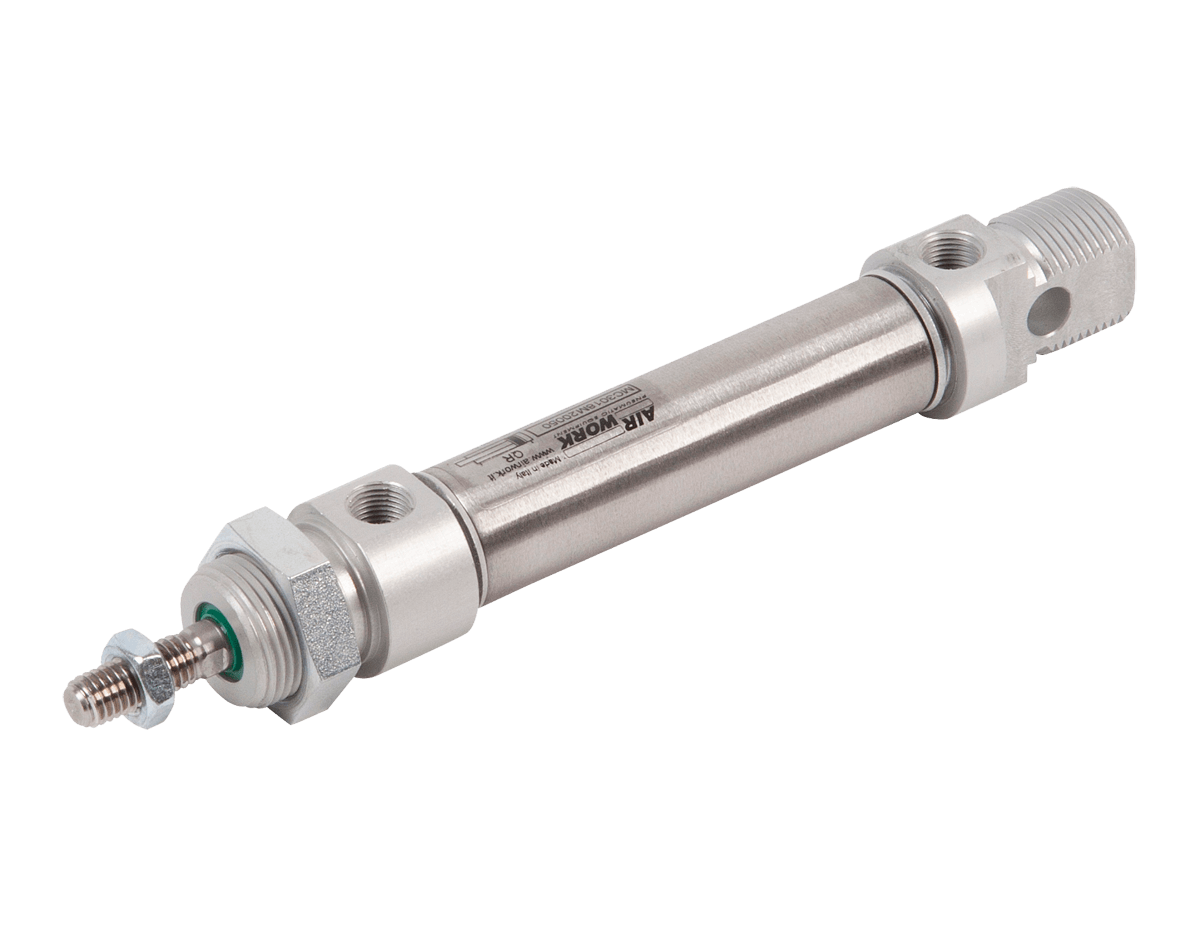

MC3018M Ø20 ISO 6432 MAGNETIC

MC Series – ISO 6432 Cylinders

We can provide any AIRWORK PNEUMATIC EQUIPMENT product, if you don't find in our store an code/product please contact us by email for detailes / offer.

SERIES MC   Ø20

Standard dimensions for the  Ø20  :  10  25  50  80  100  125  160  200   250   320

CODE: MC3018M.Ø./stroke

PDF

-- Double acting

-- Magnetic

• Stainless Steel AISI 303 rolled rod to reduce friction as much as possible
• Rod and piston seals with the highest efficiency and longest durability
• Metal piston to resist to extreme stresses
• Bronze guide bushing to reduce the axial clearance when rod is fully extended
•  Available in ATEX version ( price on request : sales@industry-store.eu )

Airwork’s ISO 6432 microcylinders are manufactured with the highest quality levels and have bore sizes between Ø8 and 25 mm therefore they allow the possibility to be used in several applications.

Both aluminum heads are fixed to the stainless steel tube by a rolling process.
ISO 6432 cylinders can be realized with double or single effect (pushing or pulling), magnetic, with bumper or cushioned.
Their fixing accessories are also available and special designs can be realized on customer demand.

For NON standard dimensions, please send email :

sales@industry-store.eu
