KD2001250200M

SERIES : KD UNIVER

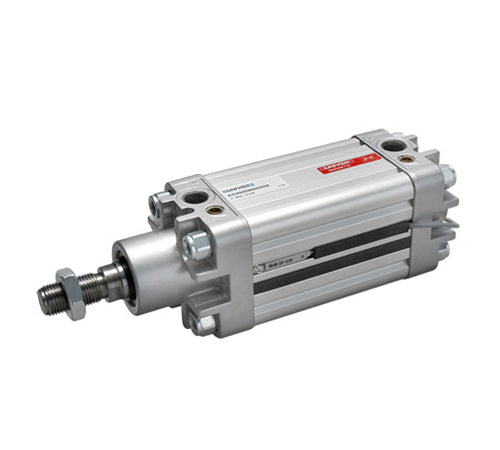

Ø 32 ÷ 125 mm - Pneumatic cylinders ISO 15552

UNIVER ISO 15552 Pneumatic cylinders HEAVY SERIES TUBE

PDF

Working temperature : -20 ÷ 80 °C

Fluid -20 ÷ 80 °C
Working pressure filtered air, with or without lubrication
Bores Ø 032 - 040 - 050 - 063 - 080 - 100 - 125 mm
Cushionings adjustable in both sides
End-caps  die-cast aluminium alloy (painted)
Barrel  anodized aluminium
Piston  die-cast aluminium alloy
Guide slide acetalic resin
Piston rod chromium-plated steel standard, stainless steel, rolled AISI 303
Piston seal  double-lip seal in nitrile rubber (NBR)
Guide bush for piston rod : UNIVER Original self-lubricating and self-aligning
Shock absorber seals : nitrile rubber (NBR) in both sides
Magnet : plasto-ferrite (standard supplied)


Available ATEX version upon request
