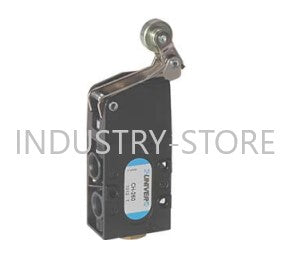

CH-262

UNIVER  CH-262

POPPET VALVES

Suitable for heavy duties and where the number of mechanical operation is high

PDF

-- SERIES: CH

-- Connection G1/8 / Comunication system : poppet

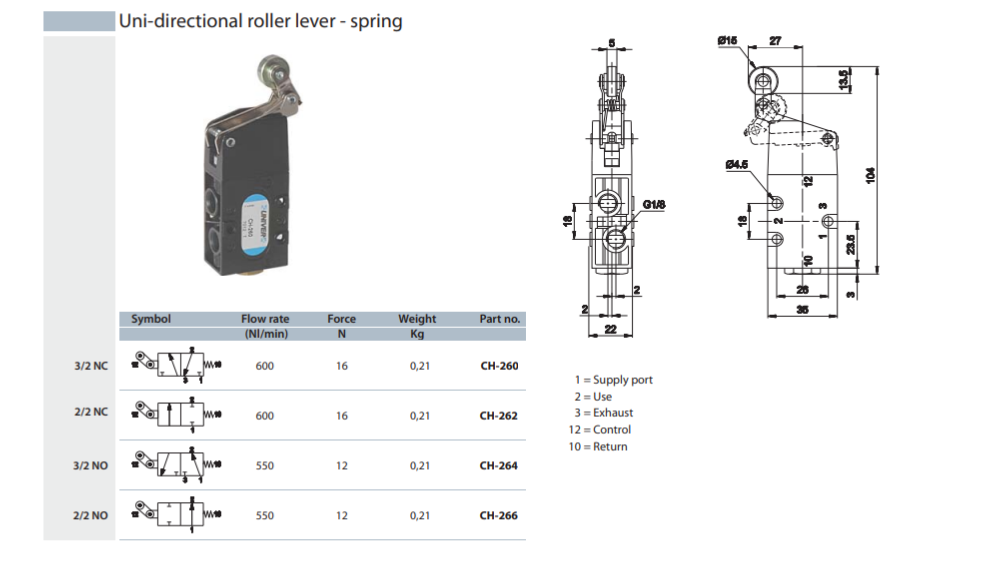

--Uni-directional roller lever - spring

-- 2/2 NC

-- Ambient temperature : -10°С  ____ 45°С

-- Max pressure: 10 bar

--Spool: Nickel-plate brass

--Valve body: zamak

--Nominal bore : 5mm

--Nominal flow rate(Nl/min): 600(NC), 550 (NO)
