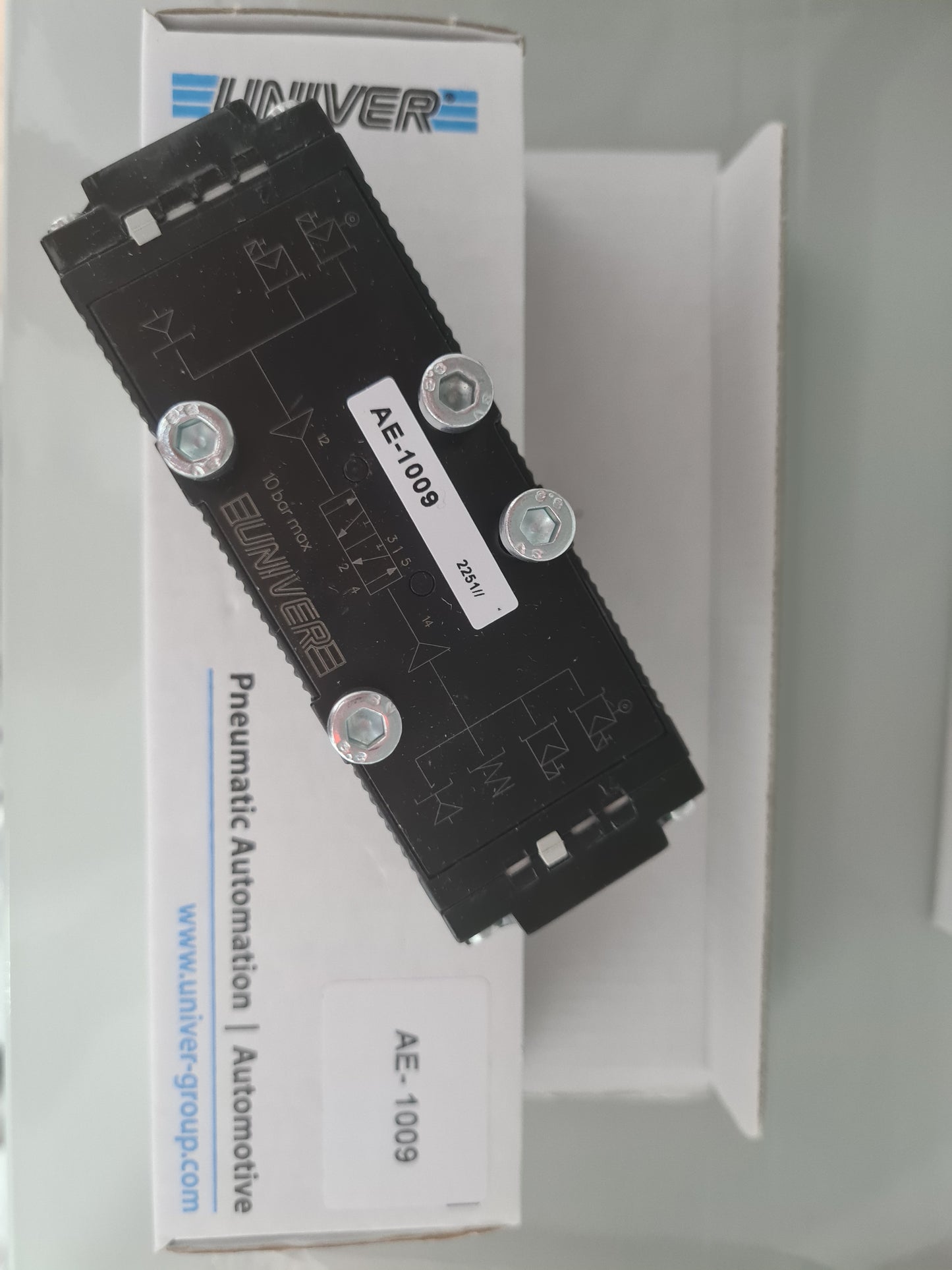

AE-1009

UNIVER  AE-1009

2 weeks

PDF

-- Type - AE  -- ISO 5599/1

Light series valves for ISO 5599/1 sub-base mounting

-- Valve with single electrical impulse , monostable

-- Ambient temperature: -10°C  -   +50°С
-- Commutation system: mixed
-- Max pressure: 10 bar
-- Valve body: acetalic resin
-- Connector: AM-5110
-- Manual override:impulse screw - 2 positions
-- Nominal flow rate: 1480 Nl/minNominal bore: 8 mm

Electrovalves are supplied without coil, connector and locking ring
