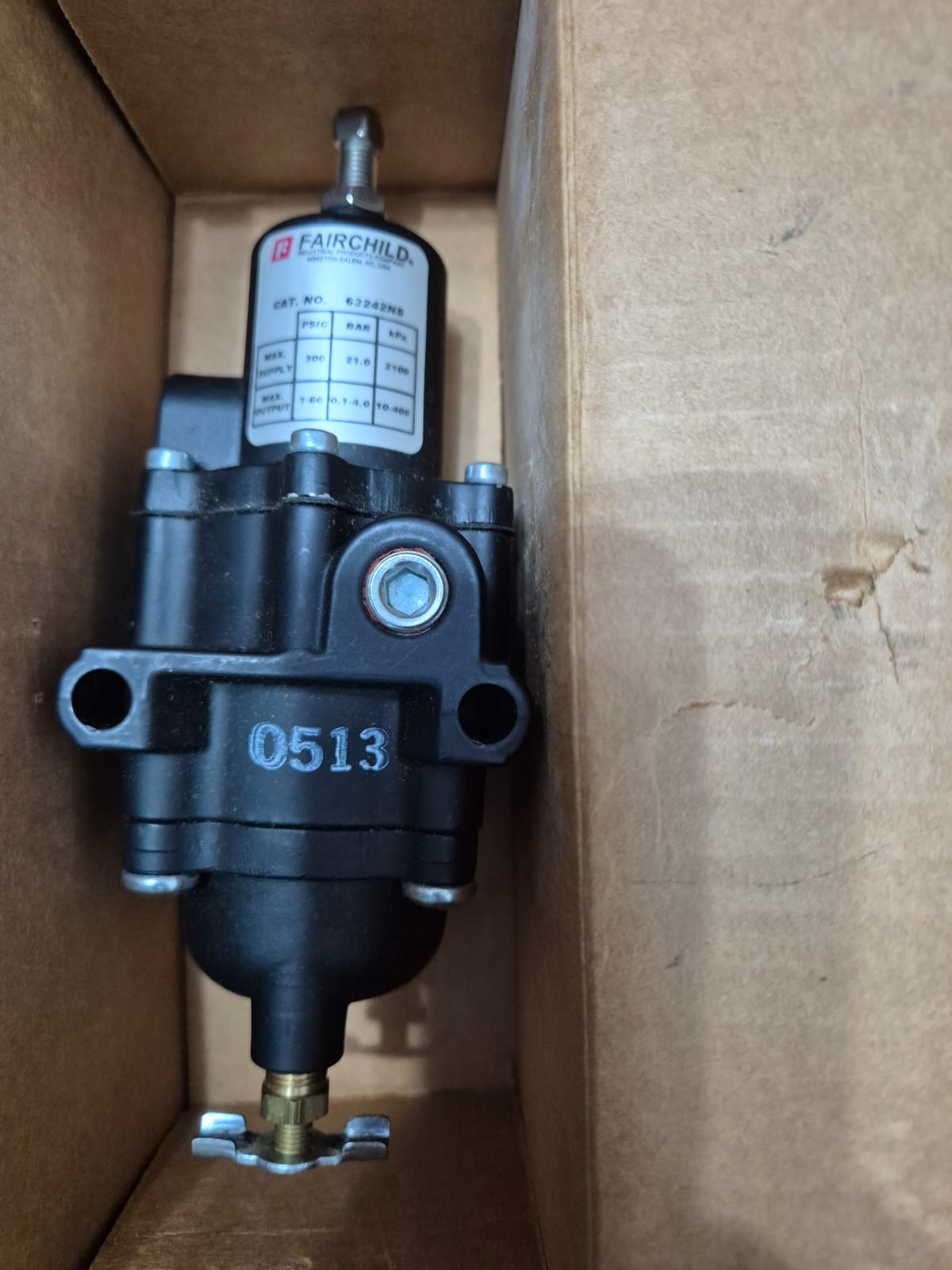

FAIRCHILD Model 63

Pneumatic Filter Regulator, 1-60 psig, 7-400 kPa, 1/4" NPT, Screw

63242NS - STOCK 1 PC

sales@industry-store.eu

• Accuracy: 0.3 psi
• Ambient Temperature: -40° to 180 °F (-40 ° to 82 °C)
• Base Model: 63242
• Body Material: Epoxy Coated Aluminum
• Connection Size: 1/4 in. NPT
• Elastomer: Nitrile
• Exhaust Capacity: 0.8 SCFM [1.36m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint
• Exhaust Type: Straight (standard)
• Flow Capacity: 25 SCFM (42.5 M³/HR)
• Mounting: Wall (09921-1 Bracket Available)
• Operator: [S] Screwdriver adjust (standard) 5/16 in. O.D.
• Options: [S] Screw adjust
• Pipe Size: 1/4 FNPT
• Pressure Range: 1 to 60 psig
• Product Type: Filter-Regulators
• Sensitivity: 1 in. W.C.
• Supply Pressure: 300 psi
• Trim: Stainless Steel / Nickel-Plated Steel / Zinc-Plated Steel
• Product Category: FRLs
