AG-3214 UNIVER
UNIVER AG-3214

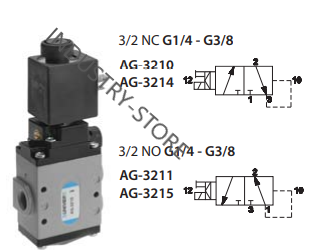

POPPET VALVES FOR VACUUM
Electrovalves 3/2 for direct vacuum servoassisted by vacum
-- DB-0607 24 V AC /50-60HZ
-- DB-0608 110 V AC /50-60HZ
-- DB-0610 220 V AC /50-60HZ
-- Type: AG
-- 3/2 NC , G 3/8
-- Electropilot U2
-- Ambient temperature : max +50°C
-- Max pressure: 10 bar
-- Commutation system: poppet
--Control - electric amplified ; Return - vacuum
VARIANTS OF THE CODE AVAILABLE
AG-3001 AG-3002 AG-3009 AG-3010 AG-3011 AG-3012 AG-3020 AG-3021 AG-3040 AG-3041 AG-3050 AG-3051 AG-3062 AG-3063 AG-3071 AG-3072 AG-3073 AG-3074 AG-3075 AG-3076 AG-3081 AG-3082 AG-3091
AG-3092 AG-3100 AG-3101 AG-3110 AG-3111 AG-3210 AG-3211
AG-3214 AG-3215 AG-3222 AG-3223 AG-3232 AG-3233 AG-3242
AG-3243 AG-3256 AG-3257 AG-3300 AG-3301 AG-3302 AG-3303 AG-3310 AG-3311 AG-3312 AG-3313 AG-3320 AG-3321 AG-3322 AG-3330 AG-3331 AG-3332
