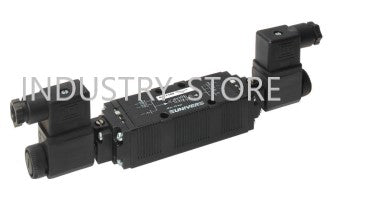

AE-1003C

UNIVER  AE-1003C

PDF

 -- Type - AE  -- ISO 5599/1

Light series valves for ISO 5599/1 sub-base mounting

-- Valve with double electrical impulse , bistable

-- Ambient temperature: -10°C  -   +50°С
-- Commutation system: mixed
-- Max pressure: 10 bar
-- Valve body: acetalic resin
-- Connector: AM-5110
-- Manual override: impulse screw - 2 positions
-- Nominal flow rate: 1480 Nl/minNominal bore: 8 mm

Electrovalves are supplied without coil, connector and locking ring

VARIANTS OF THE CODE AVAILABLE :

PRICE ON REQUEST  sales@industry-store.eu

AE-1003E   AE-1003C
