4V22006G-X0 AIRTAC

4V2006G-X0

PDF

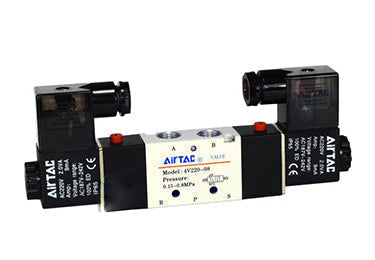

SOLENOID AIR VALVES - 4V220-06

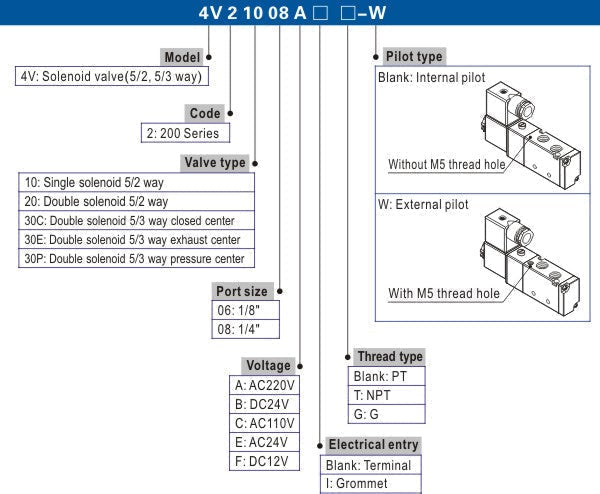

VARIANTS OF THE CODE AVAILABLE :

4V22006AG    4V22006BG    4V22006BG-NT   4V22006BG-W    4V22006BIG   4V22006CG   4V22006EG   4V22006FG    4V2006G-X0

-AIRTAC 4V200 solenoid air valve series is a functional replacement for the SMC VFS2000 series

PDF

-- SERIES 200

-- Pneumatic valve

-- Double solenoid, 5 way

-- 1/8" G port ,

--Terminal entry, internal pilot, 200 series

Product Features:
1. Pilot-oriented mode: optional for internal or external
2. Structure in sliding column mode: good tightness and sensitive reaction

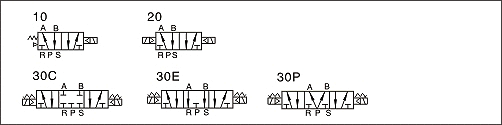

3. Three position Solenoid Air Valves have three kinds of central function for your choice
4. Double control Solenoid Air Valves have memory function
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life
6. No need to add oil for lubrication
7. It is available to form integrated valve group with the base to save installation space
8. Affiliated manual devices are equipped to facilitate installation and debugging
9. Several standard voltage grades are optional
